Item No. | S168283 |

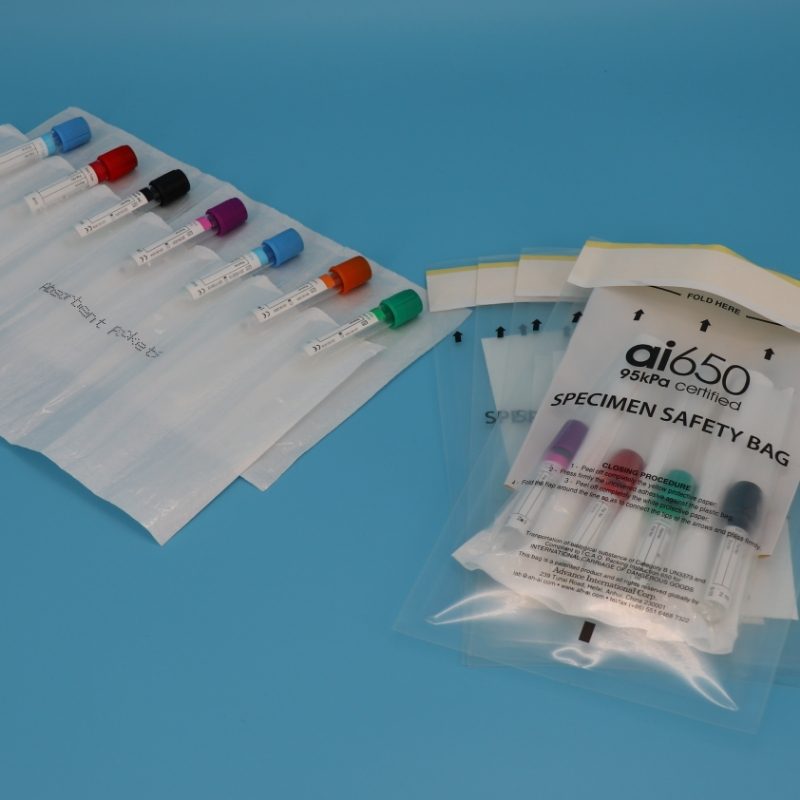

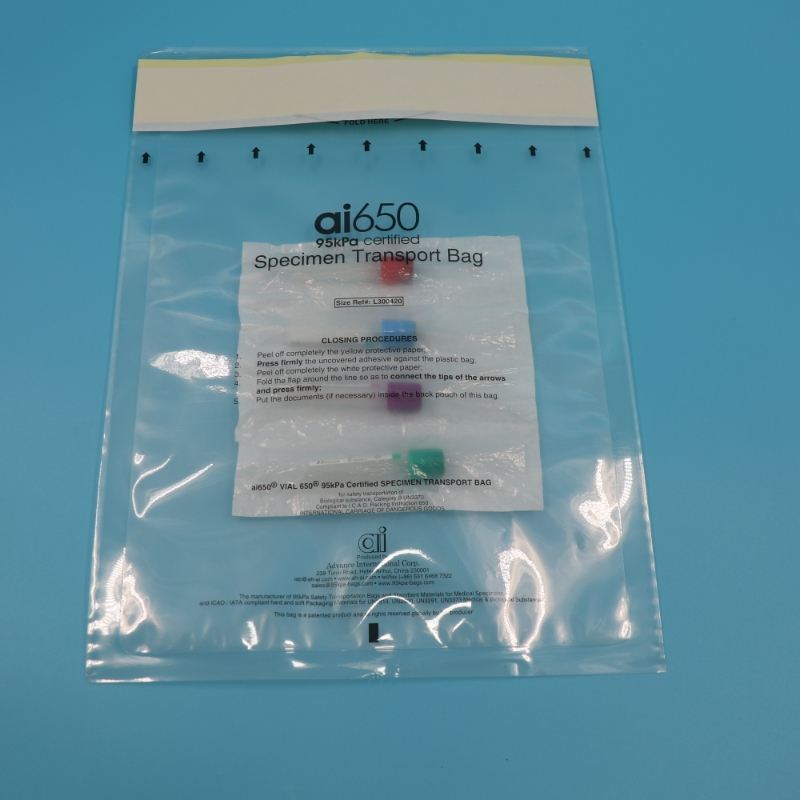

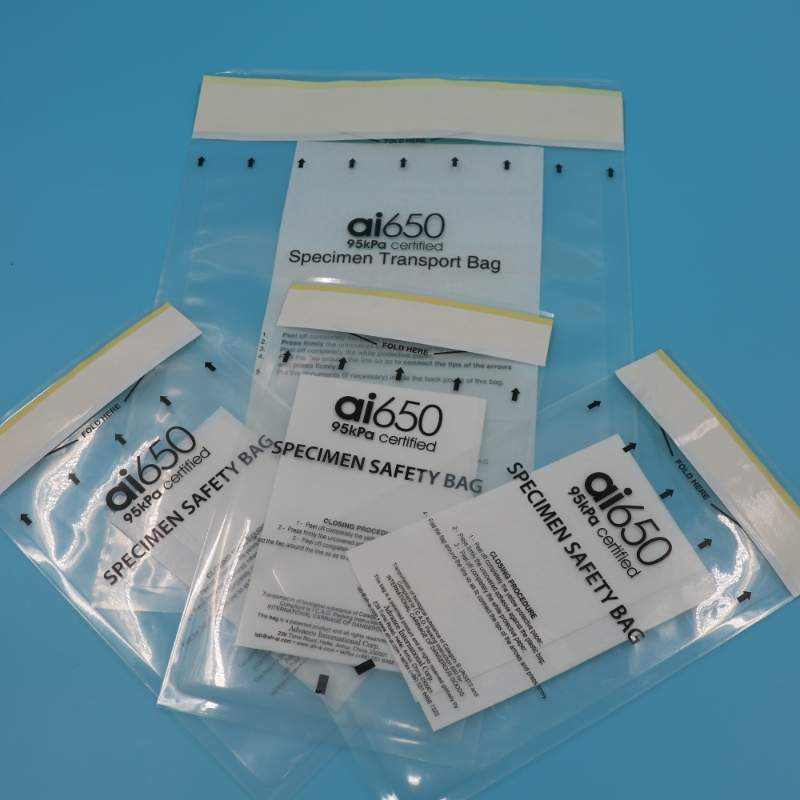

Product Name | AI650 Safety Transport Bags |
Purpose | Transportation of Medical, Clinical, or Diagnostic Specimens; UN3373 biohazard substances (as per UN regulations PI650) |
Internal Size (I.D.) | 150mm x 240mm |
External Size (O.D.) | 168mm x 283mm |
Quantity per Carton | 400 sets / carton |
Carton Weight | 9.8 kgs/carton |
Carton Dimensions | 35.5 cm x 30.0 cm x 30.5 cm |
Affiliated Parts | Each bag preloaded with a 7-slotted absorbent pocket sleeve (# APS7X550) |
Yes we can produce by your samples ,we can send you samples for free, but customer need to pay courier cost by themselves.
Generally, it will take 5 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Yes, the AI650 biohazard specimen bags offers customization options. It can be produced with the AI650 brand, an OEM brand, or a customer's customized label to meet diverse customer needs.But the MOQ is 100,000 pieces.
According to IATA Packaging Instruction 650 for transporting UN3373 Biological Substance Class B, the following requirements apply:
The AI650 bag fulfills these requirements and can be used as a secondary liquid-tight packaging in conjunction with a 4GV packaging kit, simplifying the transportation of hazardous materials.
Proper closure is crucial to ensure the bag performs under high internal pressures, such as those experienced with a loss of cabin pressure on an aircraft. The bag features a patented bonded closure and continuous seal that meets or exceeds the standards set by major airlines and the U.S. Department of Transportation (DOT). When correctly closed, the bag is tamper-evident.
The bag is made from a custom polyethylene film with a strong, bonded closure and a continuous seal, ensuring reliable containment of critical fluids and substances. Inside, it typically includes an absorbent sleeve capable of holding 7 cryovials and absorbing at least 200 ml of distilled water.
Yes, the AI650 95kPa bag is rigorously tested to withstand a 95kPa pressure differential without leaking across a wide temperature range of -40°C to +55°C (-40°F to +131°F). Its patented VonSeal® liquid-tight design guarantees the secure containment of critical fluids and substances.
Can the specimen bag withstand temperature and pressure changes?
This bag is ideal for transporting pipes, bottles, containers, or specimens that may contain infectious sources to laboratories. This includes items like blood samples and tissue specimens. It is particularly well-suited for biohazardous materials that require air transportation and meets the specific requirements of IATA Packaging Instruction 650.
UN3373 is a DG shipping classification under IATA DGR - Infectious Substances.
Infectious substances are substances known or reasonably expected to contain pathogens. Pathogens are defined as microorganisms (including bacteria, viruses, parasites, fungi) and other agents, such as viruses, that can cause disease in humans or animals. Infectious substances are classified into two categories: A or B, depending on the degree of infectivity.
Infectious substances generally include the following: biological substances, biological products, patient specimens, medical waste.
Category A is an infectious substance that is transported in a form that is capable of causing permanent disability, life-threatening or fatal disease in otherwise healthy humans or animals when exposed to the substance.
Any biological infectious substance that does not meet the criteria for inclusion in Category A will be assigned to Category B infectious substances, with the identification number UN 3373, unless the source patient or animal has or is likely to have a serious and dangerous human or animal disease.
Size:16cm*11cm*13cm
Diameter:10cm
Inner Packing:1 sponge test tube rack and 1 adsorption pad
Tube Packing:10.5*10.5CM, can hold 20 test tubes
Material:PP
Users: Center for Disease Control and Prevention, Hospitals, Blood Stations, Clinical Inspection Centers, Tuberculosis Prevention and Control Institutes, Entry-Exit Inspection and Quarantine Bureaus, Animal Diseases, etc.
Safety And Durability:
Reusable Design: Withstands repeated sterilization (autoclavable up to 121°C).
Impact-Resistant Structure: 3.5 mm wall thickness ensures protection against crushing or puncturing during transit.
Outer Packaging:
• Place the canister into a rigid, insulated box with additional cushioning.
• Label with UN certification marks, hazard symbols, and orientation arrows.
• Pre-printed UN specification markings and biohazard labels available upon request.
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
